BlackBerry KEY2 LE (blackberry-luna)
Appearance
pmOS can't run on its internal storage.However, it's possible to boot pmOS from SD Card. |
This device has been tested with postmarketOS, but its device package has not yet been added to the postmarketOS repositories. This means that it cannot be selected in pmbootstrap. Status: bootloader is very locked down, but once you get over that hurdle most things work. But the gpu crashes a lot due to a bug in the sdm660-mainline kernel. |
CHANGE_ME CHANGE_ME | |
Manufacturer | BlackBerry |
---|---|
Name | KEY2 LE |
Codename | blackberry-luna |
Model | BBE100 |
Released | 2018 |
Type | keyboard handset |
Hardware | |
Chipset | Qualcomm Snapdragon 636 (SDM636) |
CPU |
Octa-core (4x1.8 GHz Kryo 260 Gold 4x1.6 GHz Kryo 260 Silver) |
GPU | Adreno 509 |
Display | 1620x1080@60Hz 4.5" IPS LCD |
Storage | 32/64GB |
Memory | 4GB |
Architecture | aarch64 |
Software | |
Original software The software and version the device was shipped with. |
Android 8.1 Oreo |
Extended version The most recent supported version from the manufacturer. |
Android 8.1 Oreo |
FOSS bootloader | no |
postmarketOS | |
Category | testing |
Pre-built images Whether pre-built images are available here. |
no |
Mainline Instead of a Linux kernel fork, it is possible to run (Close to) Mainline. |
yes |
pmOS kernel The kernel version that runs on the device's port. |
6.15.3 |
Unixbench score Unixbench Whetstone/Dhrystone score. See Unixbench. |
2125.9 |
Firmware package | WIP firmware-blackberry-luna |
Initial MR Initial merge request. |
pmaports!6830 |
Flashing It is possible to flash the device with pmbootstrap flasher . |
Untested
|
---|---|
USB Networking After connecting the device with USB to your PC, you can connect to it via telnet (initramfs) or SSH (booted system). |
Works
|
Internal storage eMMC, SD cards, UFS, ... |
Works
|
SD card Also includes other external storage cards |
Works
|
Battery Charging and battery level reporting works |
Partial
|
Screen Display works. Ideally with sleep mode and brightness control. |
Works
|
Touchscreen |
Works
|
Keyboard Build in physical keyboard |
Works
|
Multimedia | |
3D Acceleration |
Partial
|
Audio Audio playback, microphone, headset and buttons. |
Broken
|
Camera |
Broken
|
Camera Flash |
Broken
|
Connectivity | |
WiFi |
Works
|
Bluetooth |
Works
|
GPS |
Broken
|
NFC Near Field Communication |
Broken
|
Modem | |
Calls |
Broken
|
SMS |
Broken
|
Mobile data |
Broken
|
Miscellaneous | |
FDE Full disk encryption and unlocking with unl0kr. |
Untested
|
USB OTG USB On-The-Go or USB-C Role switching |
Broken
|
HDMI/DP Video and audio output with HDMI or Display Port works. |
Untested
|
Sensors | |
Accelerometer Auto screen rotation works in desktops e.g. Phosh or Plasma Mobile |
Works
|
Ambient Light |
Untested
|
Hall Effect Also known as flip cover sensor |
Untested
|
Haptics |
Broken
|
Power Sensor Sensor to monitor current, voltage and power. Not fuel gauge! |
Untested
|
Primary Bootloader It is possible to replace stock bootloader with U-Boot. |
Broken
|
---|---|
Secondary Bootloader It is possible to chainload U-Boot from stock bootloader. |
Works
|
Mainline Latest versions of U-Boot are not broken and it is possible to use them. |
Partial
|
Internal Storage It is possible to boot from internal storage (e.g. eMMC or UFS). |
Works
|
SD card It is possible to boot from SD card. |
Works
|
USB Host It is possible to boot from a USB storage or connect a keyboard. |
Untested
|
USB Peripheral It is possible to use device as a peripheral in U-Boot, e.g. for fastboot mode. |
Works
|
Display |
Works
|
Keyboard |
Broken
|
Buttons It is possible to navigate in boot menu or grub with volume and power buttons. |
Works
|
Contributors
Maintainers
Users owning this device
Status

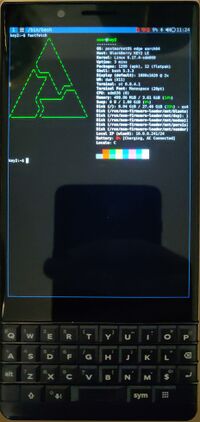

I have my device running with feature support as indicated. GPU crash is pretty consistently hanging the device, so I limit GPU usage by running sxmo. Considering maybe removing GPU from device-tree until the kernel is fixed.
Currently it's booting from SD card by extlinux with U-Boot, but I can probably get bootimg working with a bit of effort. It didn't work the first time I tried and I didn't look into it further since I already had U-Boot working.
Finishing up the PRs to get it into pmaports properly, links in the doobly-doo.
How to enter flash mode
TODO
Installation
TODO
