Huawei Y6 2019

From postmarketOS Wiki
Huawei Y6 2019
Manufacturer Huawei
Name Y6 2019
Codename huawei-madrid
Model MRD-LX1
Released 2019
Type handset
Hardware
Chipset MediaTek Helio A22 (MT6761)
CPU Quad-core 2.0 GHz Cortex-A53
GPU PowerVR Rogue GE8300 (driver version 1.10@5130912]
Display 720x1560 IPS 6.09"
Storage 32GB
Memory 2GB
Architecture aarch64
Software
Original software
The software and version the device was shipped with.
Android EMUI 9.0
Extended version
The most recent supported version from the manufacturer.
Android EMUI 9.1 (Linux 4.9.117+)
Mainline
Instead of a Linux kernel fork, it is possible to run (Close to) Mainline.
no

Huawei Y6 2019, codenamed madrid, is an entry level phone running on the MediaTek MT6761 platform. It's Little Kernel is 32 bit and Preloader does not verify Little Kernel when the bootloader is unlocked. This means a U-Boot port instead of Little Kernel is possible. The device is vulnerable to kamakiri, meaning we can use MTKClient in BROM mode. Preloader USBDL is disabled and there is currently no way to activate it back. Testpointing is needed to get BROM.

Contributors

  • 37nx
  • Fenolftalein

Users owning this device

Unlocking the bootloader

The phone can be unlocked with patching the Little Kernel with kaeru (board file) and unlocking seccfg with mtkclient.

Unlock seccfg: mtk da seccfg unlock

Dump LK: mtk r lk lk.img

Clone kaeru repo: git clone https://github.com/R0rt1z2/kaeru.git

Using Docker to build is strongly recommended: ./docker_run.sh

Move your lk.img to kaeru folder and run: ./build.py madrid lk.img

Now flash madrid-kaeru.bin to your device: mtk w lk [path to madrid-kaeru.bin]

Reboot the device: mtk reset

Now boot to fastboot mode and run: fastboot oem kaeru-version

You should see something like this:

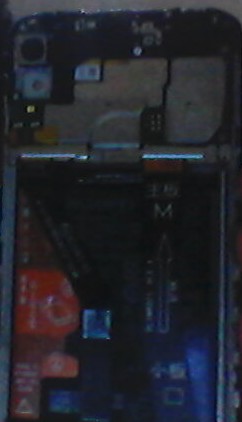

the device in the photo is not madrid, but the text should be similar

Then run: fastboot getvar unlocked You should see unlocked:yes

Then run: fastboot oem lock-state info You should see both USER LockState and FB LockState unlocked.

Extra information

GSMArena page

AIDA64 report

Device tree

Open Source package by Huawei (contains broken downstream kernel source)
